Raspberry Pi Powered Chess Clock
$ version 1.0.0 | status:
COMPLETED_
Project Overview
Application
Time management for time allocated to players
Development Stack

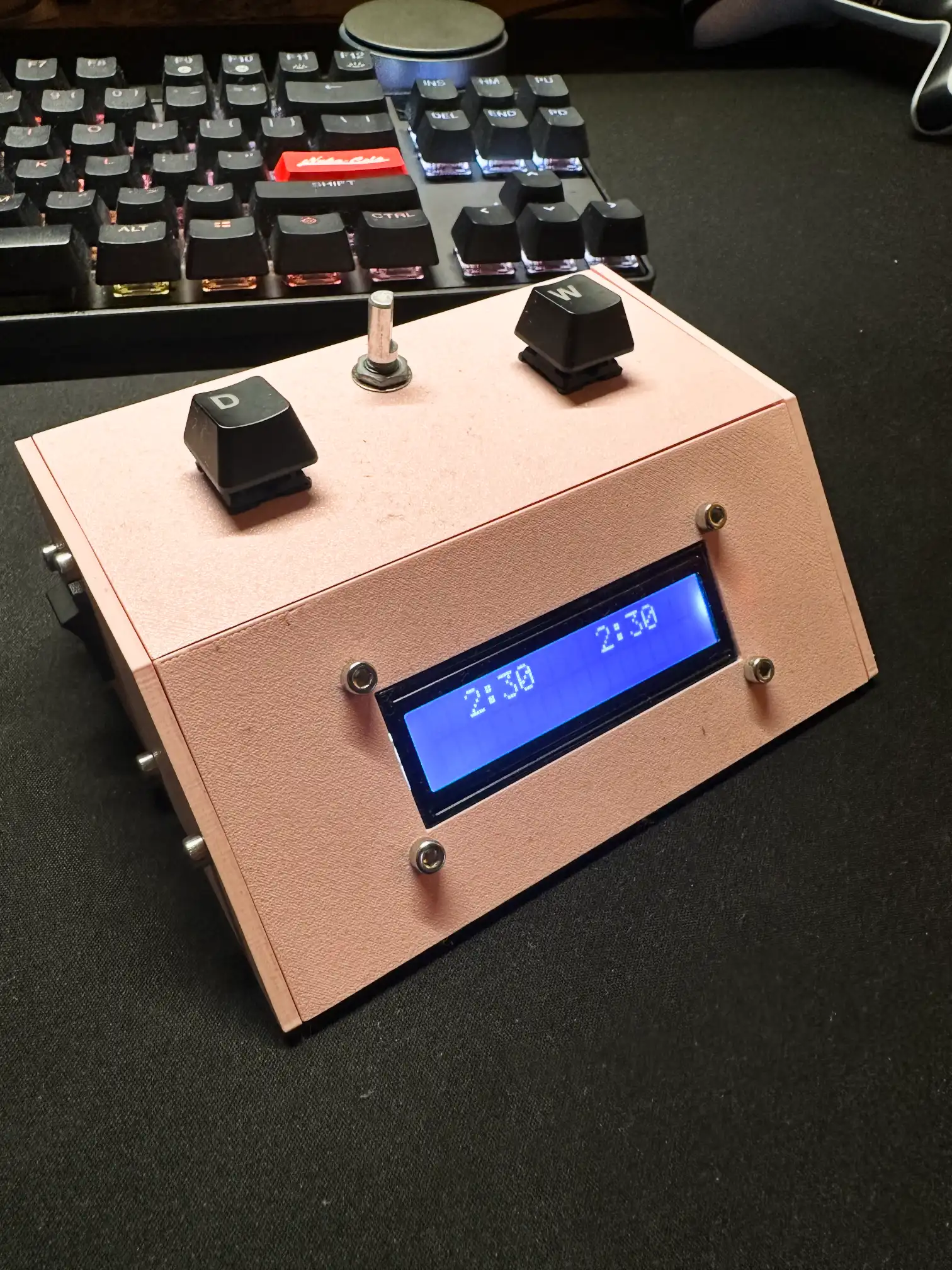

CAD | MicroPython 🐍A fully functional digital chess clock featuring dual timers, dual mechanial switches and a bright 7-segment LED display. Designed for chess tournaments with multiple time control settings. The device includes precise millisecond timing, adjustable increments, and a sleek enclosure suitable for competitive play.

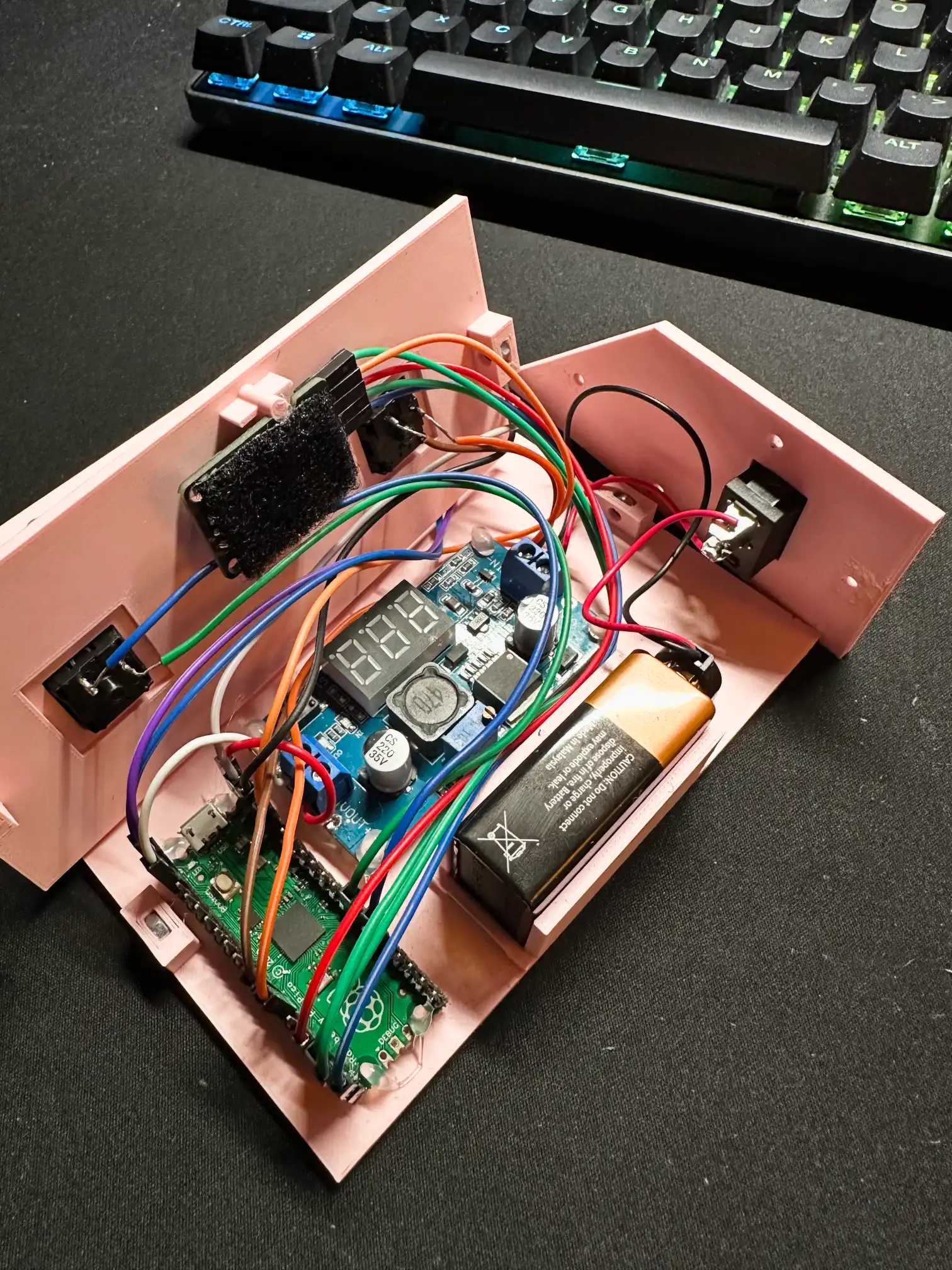

Hardware
-
DisplayLCD1602 (~$4-5)
-
MicrocontrollerRaspberry Pi Pico ($7.50)
-
Input MethodsSwitches salvaged from an old mechanical keyboard
-
Power Source9V battery via buck converter ($3.50)
-

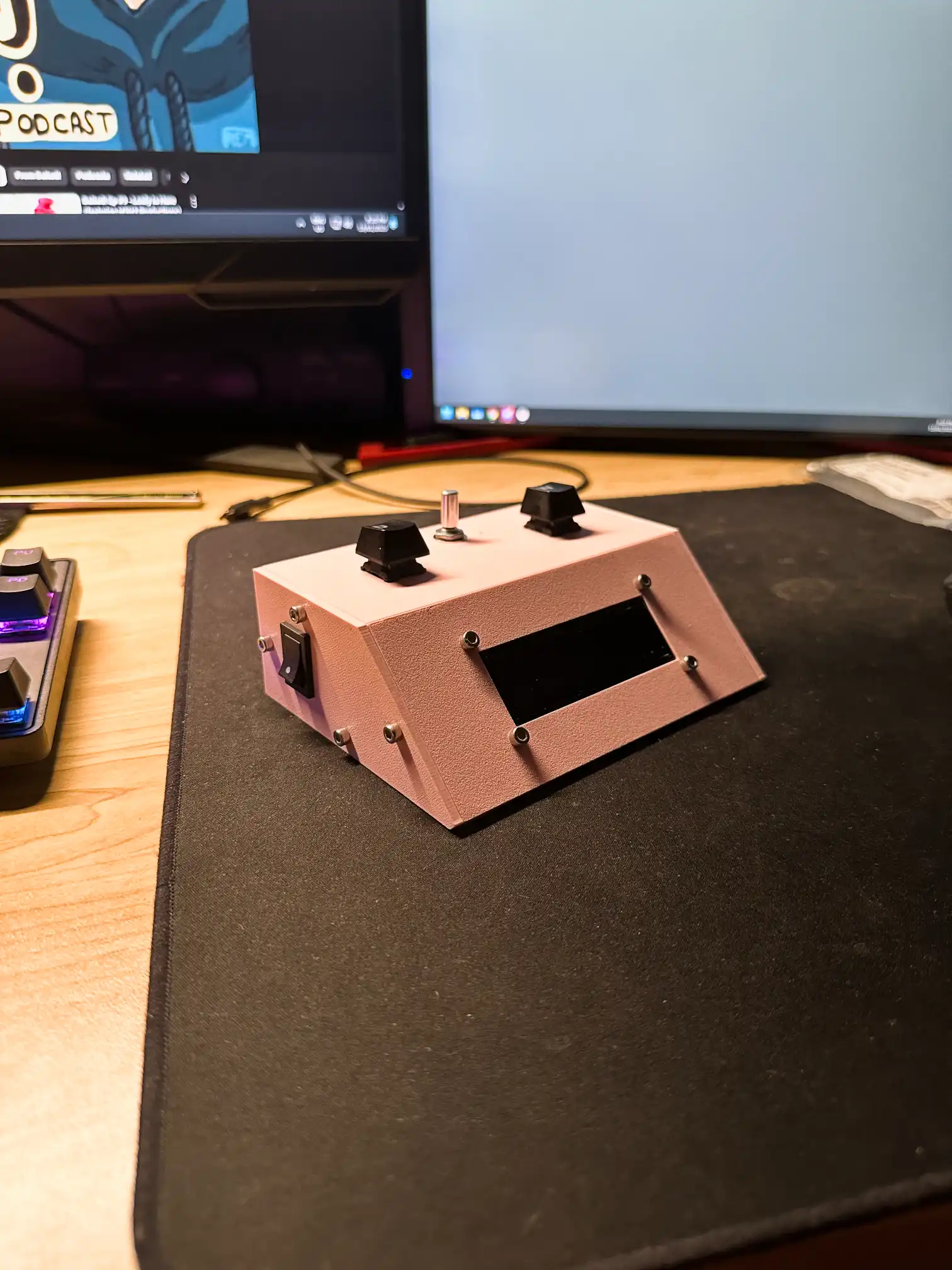

CaseCustom 3D-printed enclosure printed in PETG
Features
-
Increment SupportConfigurable time increments per move
-
Custom Time AllocationConfigurable time settings for each player
-
Long Battery LifeReplaceable 9V battery provides incredibly long battery life
-
PortableCompact and lightweight design for easy transport
