Custom Fabricated CNC Drawer
$ version 1.0.0 | status: COMPLETED_
Project Overview
Application
Storage for various tools and materials for CNC machining
Development Stack
CAD | Welding

A custom fabricated CNC drawer designed for optimal storage and organization of tools and materials. The project utilizes CAD for design and welding techniques for construction, ensuring durability and functionality.

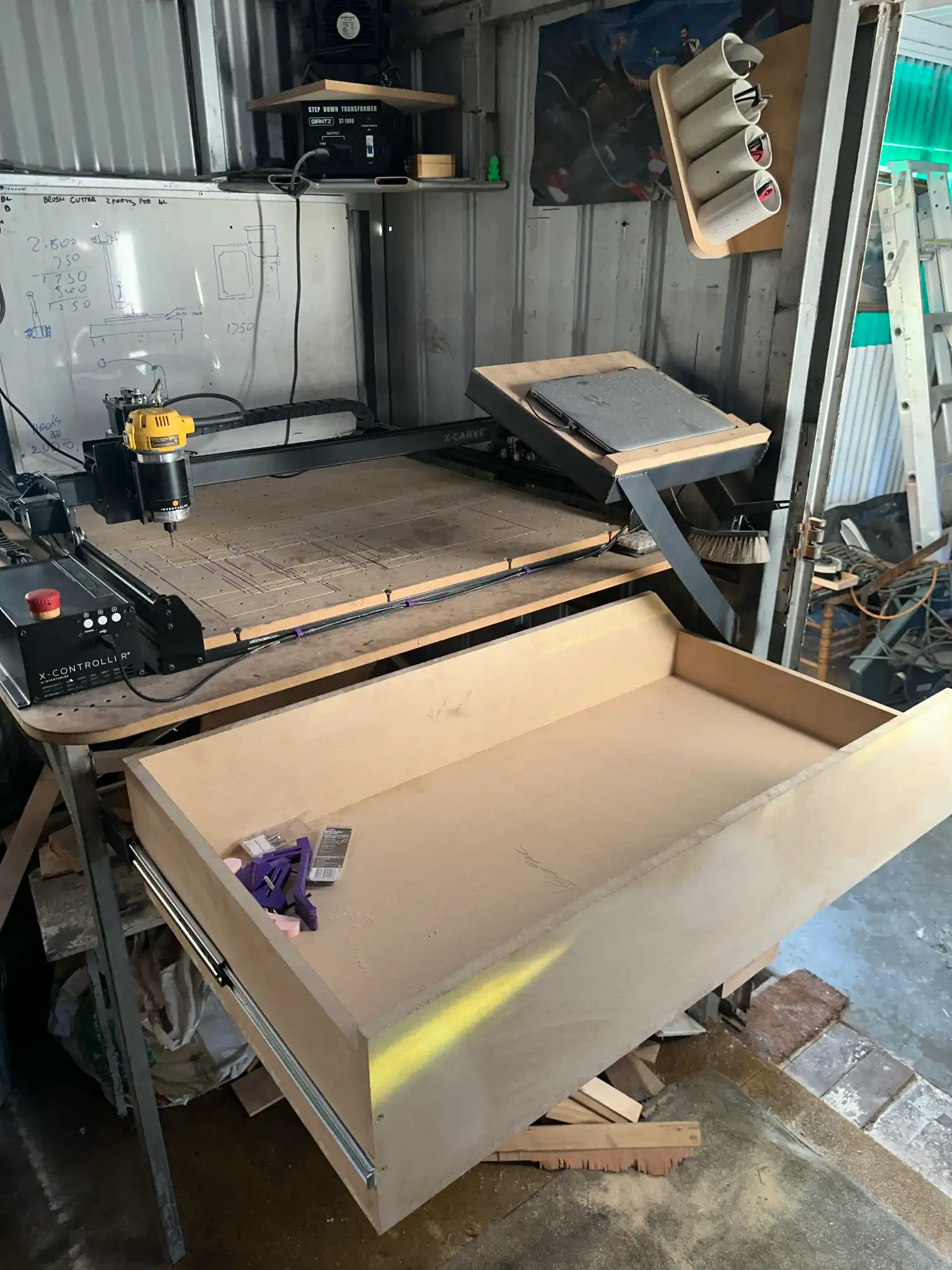

Final Assembly (open)

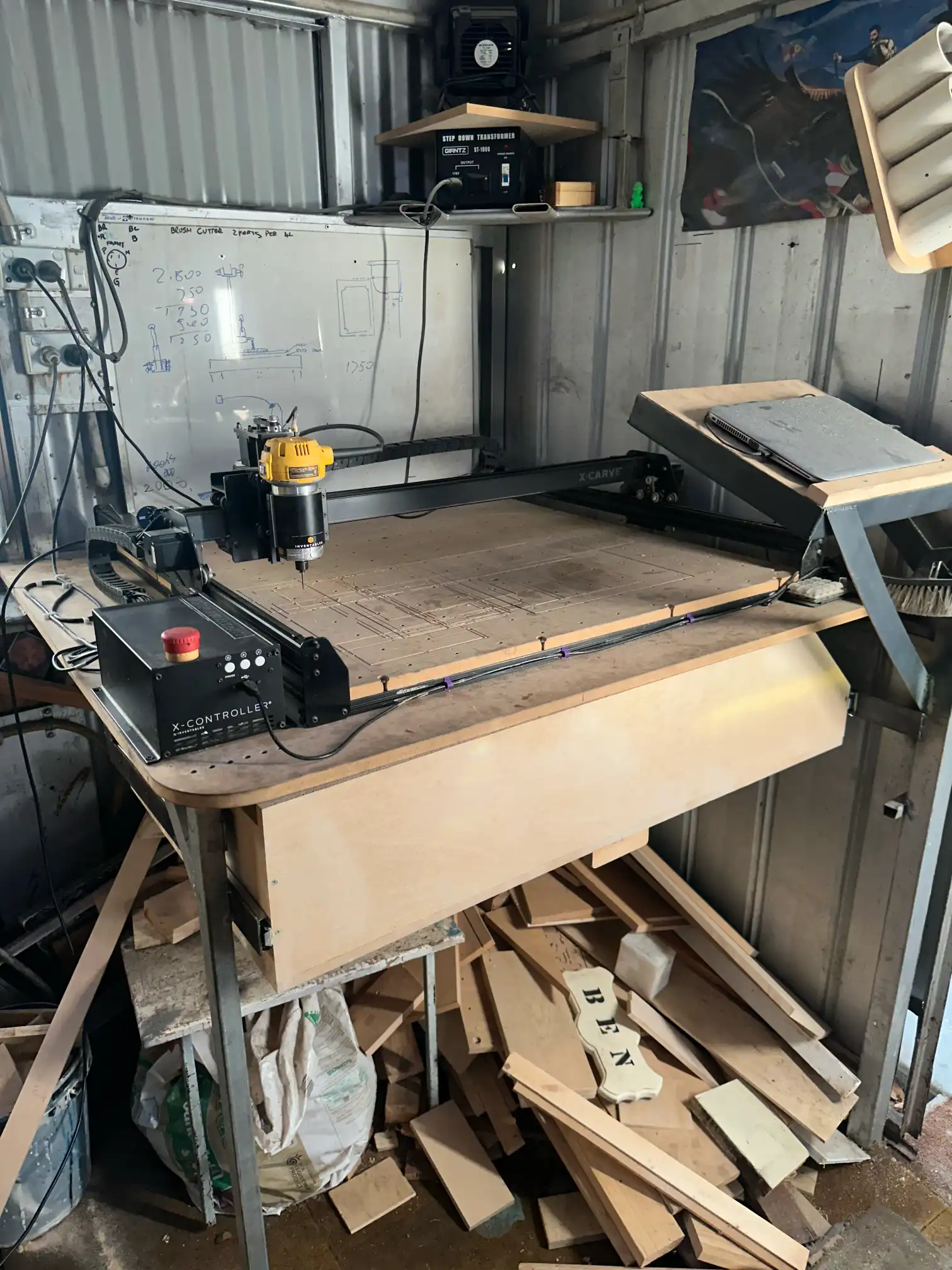

Final Assembly (closed)

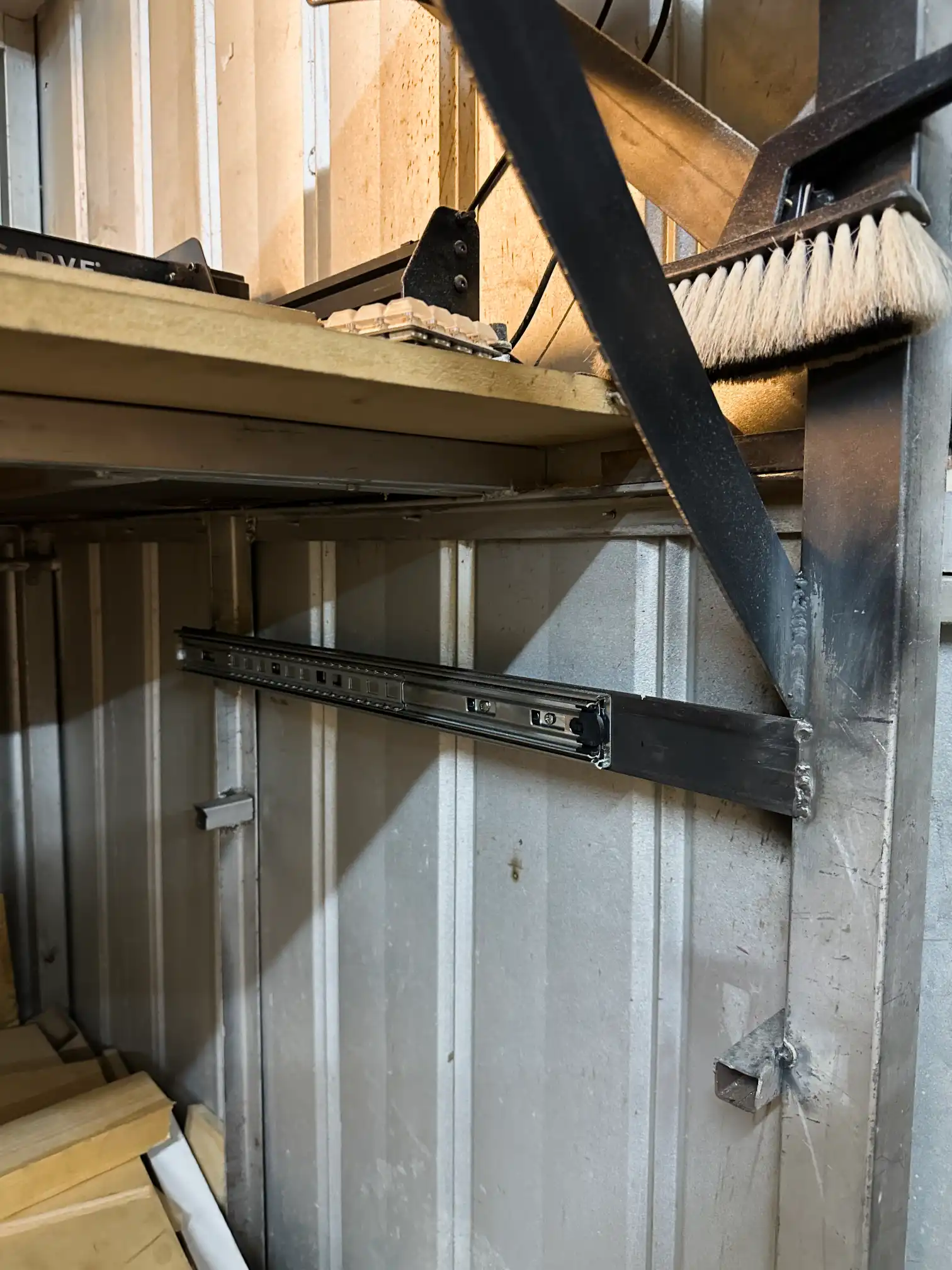

Right Slider Assembly
Hardware
  • •
    Bottom & Sides
    16mm MDF
  • •
    Frame For Sliders
    50mm x 3mm Steel Flat Bar
  • •
    Sliders
    Heavy Duty Drawer Slides Rated For 90KG
Features
  • •
    Storage
    Deep sides ensures ability to store taller items
  • •
    Heavy Duty Construction
    Thicker than necessary MDF and overbuilt sliders ensure durability
