Custom Fabricated Motorcycle Gear Rack
$ version 1.0.0 | status: COMPLETED_
Project Overview
Application
Storage and display of various motorcycle gear
Development Stack
CAD | Welding

A custom fabricated motorcycle gear rack designed for optimal storage and display of various gear items. The project utilizes CAD for design and welding techniques for construction, ensuring durability and functionality.

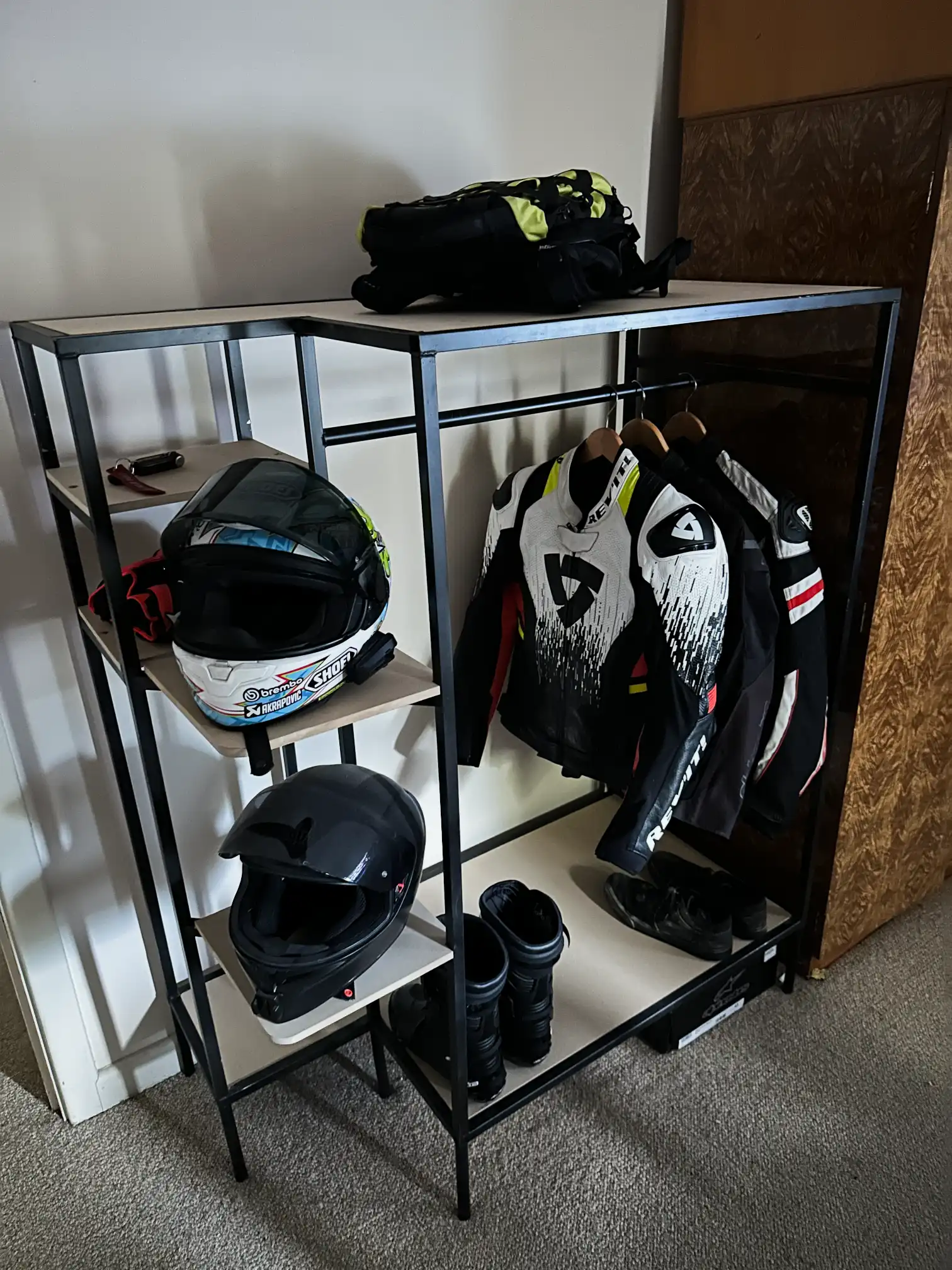

Front View

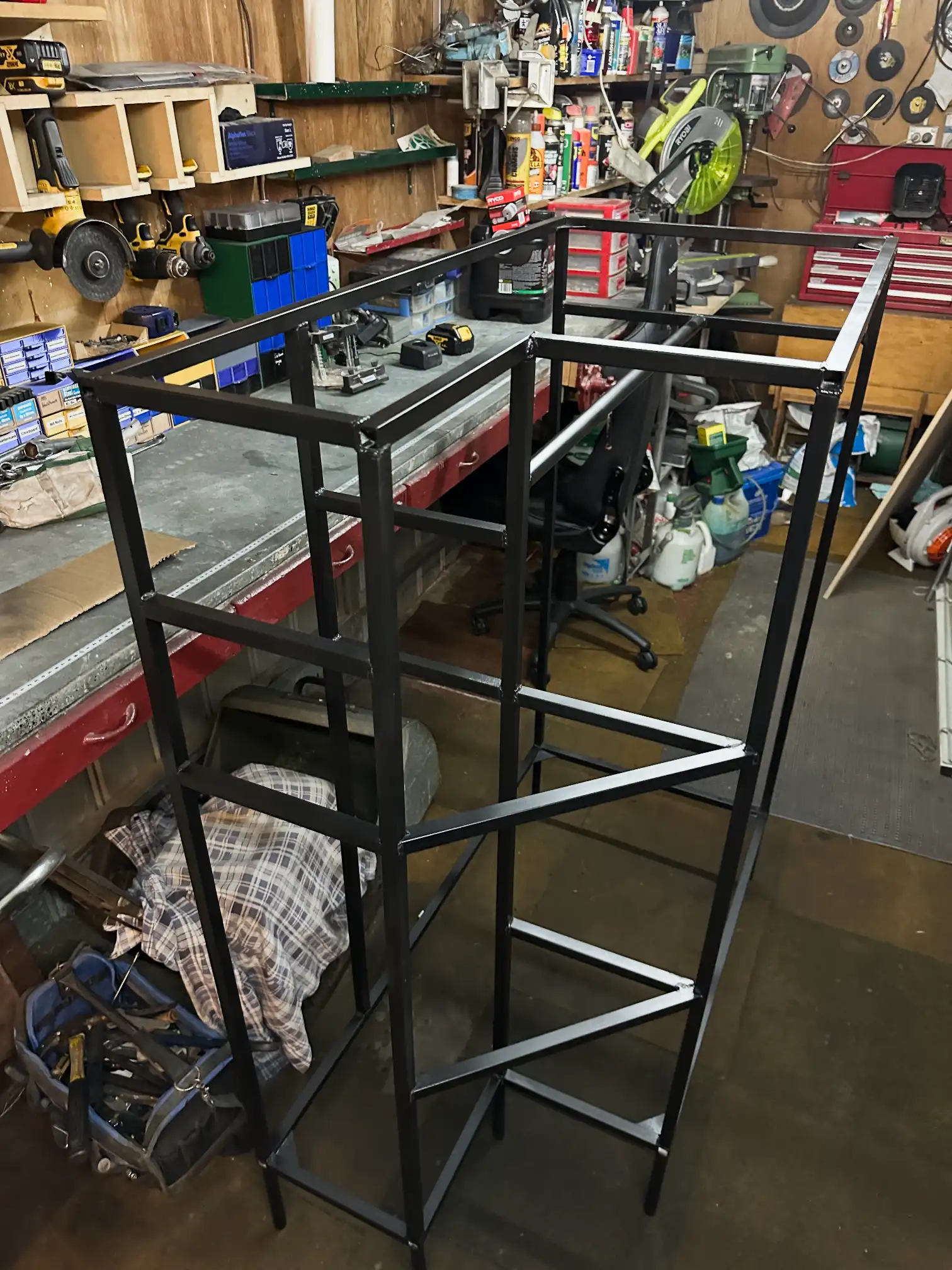

Detail View

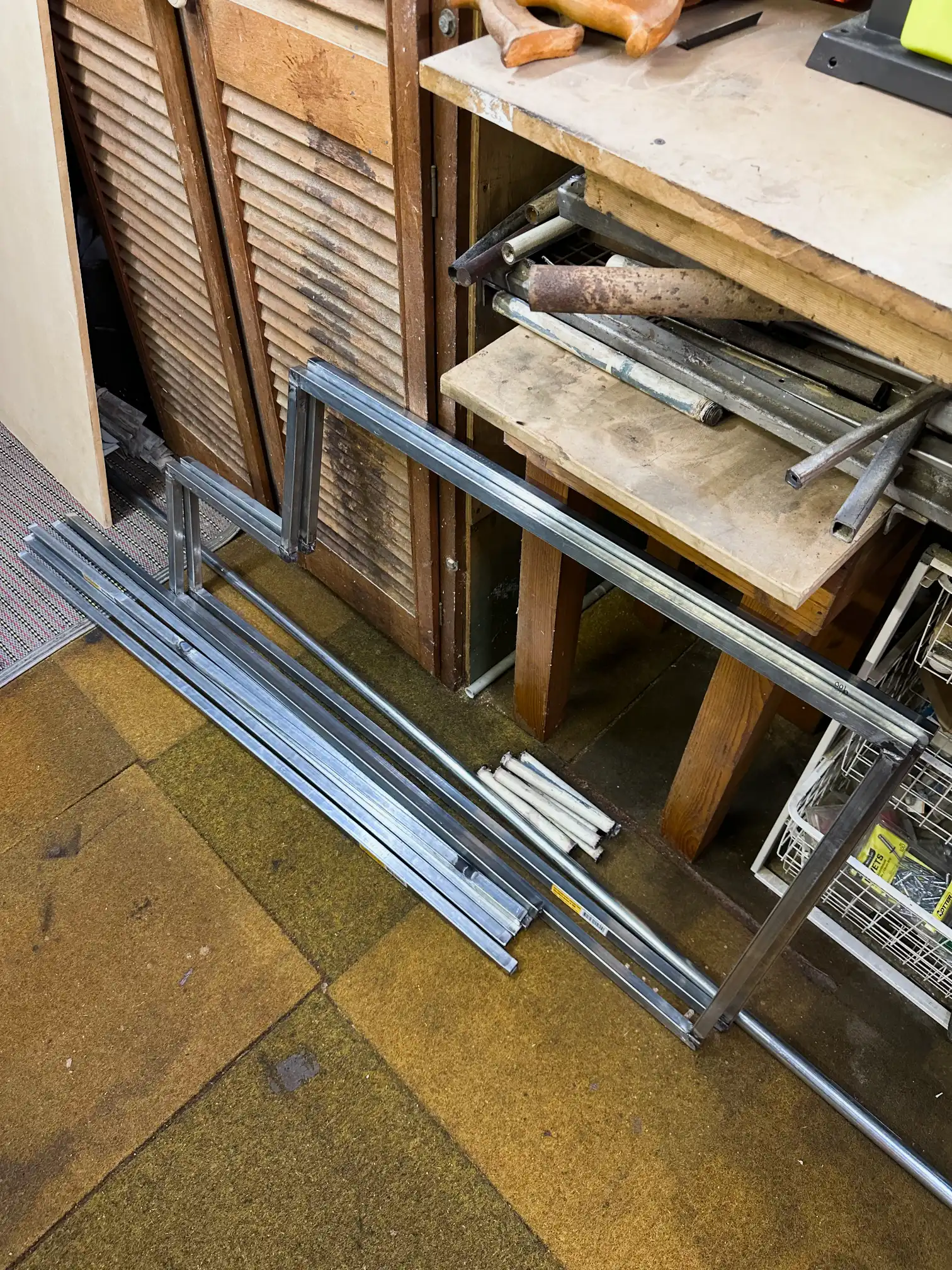

Display Detail
Hardware
  • •
    Top, Bottom & Shelves
    16mm MDF
  • •
    Frame
    20mmx20mm Square Steel Tube
  • •
    Paint
    Matte black paint and primer spray paint
Features
  • •
    Helmet Display
    Dual helmet display on the corner of the rack
  • •
    Key Storage
    Dedicated shelf for keys
  • •
    Glove Storage
    Dedicated shelf for gloves right next to the helmets
